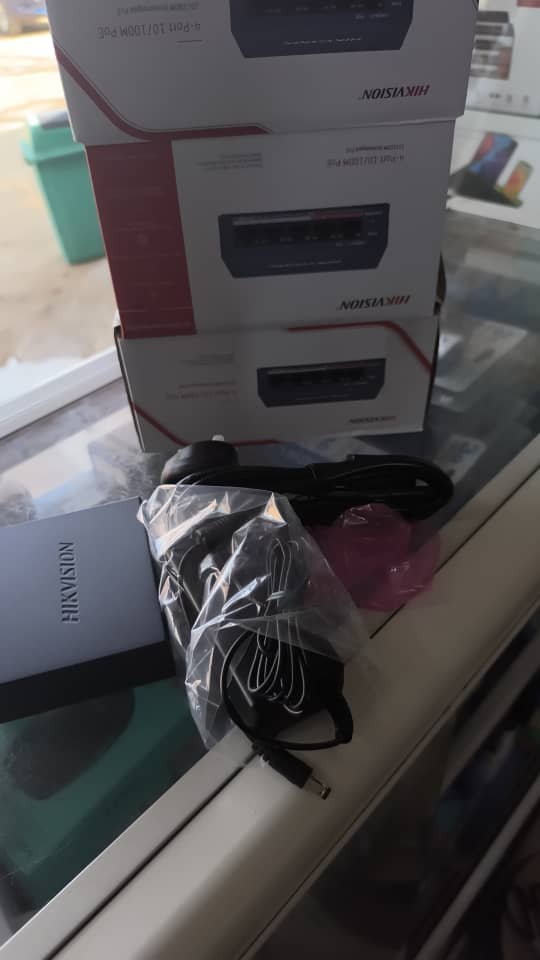

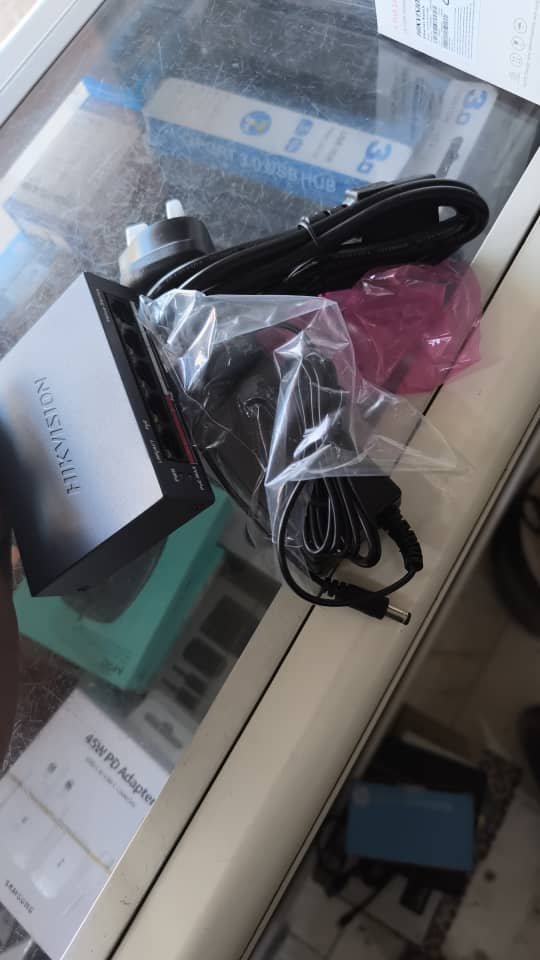

Hikvision DS-3E1105P-EI 4 Port Smart POE Switch

Description

Hikvision DS-3E1105P-EI 4 Port Fast Ethernet Smart POE Switch

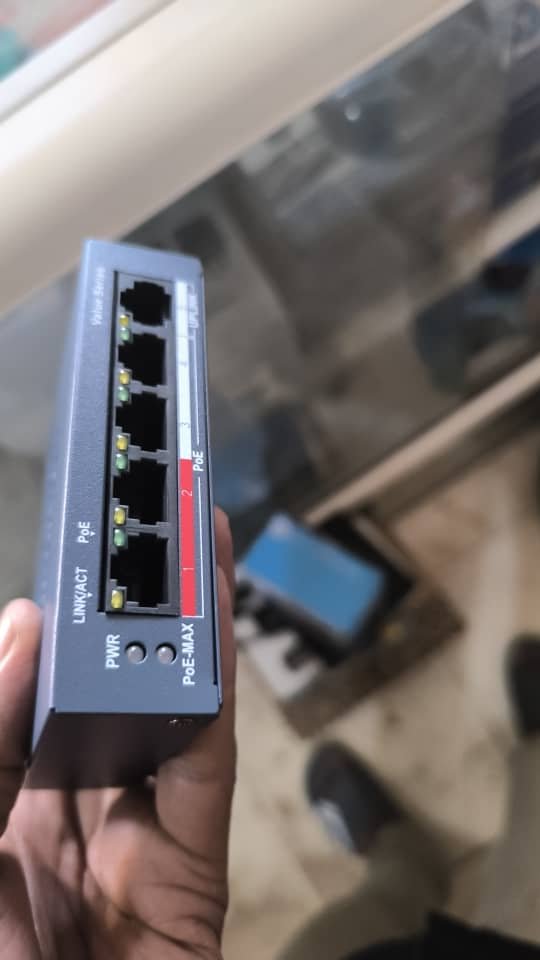

4 × 100 Mbps PoE RJ45 ports, 1 × 100 Mbps network RJ45 port.
IEEE 802.3at/af standard for PoE ports.
Network topology management, alarm push, network health monitor.
6 KV surge protection for PoE ports.
AF/AT camera can reach up to 300 m in extend mode.
Network Parameters
Port Number4 × 100 Mbps PoE RJ45 ports, and 1 × 100 Mbps network RJ45 port.
Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
Working ModeStandard mode (default), Extend mode
StandardIEEE 802.3, IEEE 802.3u, and IEEE 802.3x
Forwarding ModeStore-and-forward switching
MAC Address Table2 K
Internal Cache768 Kbits
Switching Capacity1 Gbps
Packet Forwarding Rate0.744 Mpps
Operation Management
Device MaintenanceSupport remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters.
Port ConfigurationSupport rate, flow control, and switch configuration
General
Dimension (W × H × D)105 mm × 27.6 mm × 83.1 mm (4.76” × 3.47” × 1.09”)
Storage Temperature-40°C to 85°C (-40°F to 185°F)
Power Source65 W
Net Weight0.22 kg (0.49 lb)
Power Consumption In Idle65 W
ShellMetal material, fan-free design
Operating Temperature0°C to 40°C (32°F to 104°F)
Operating Humidity5% to 95% (no condensation)
Power Supply48 VDC, 1.35 A
Max. Power Consumption 65 W
